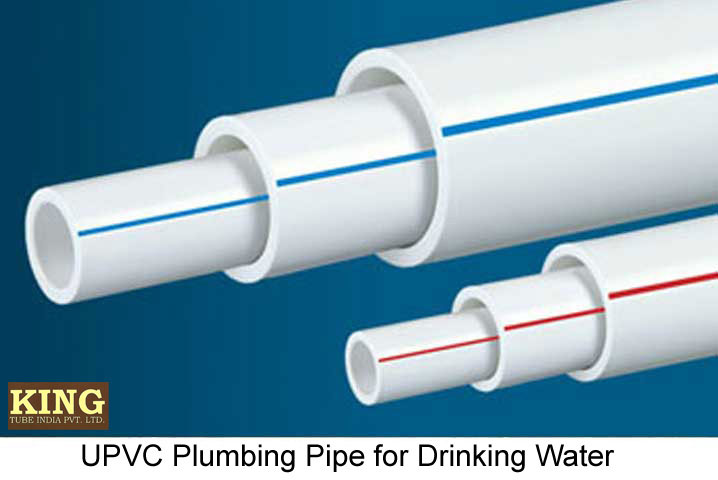

Upvc Plumbing Pipe

Range

Nominal bore of ½ to 1 ½ inches mm diameter.

APPLICATIONS:

These pipes can be used in Building Plumbing,Water Distributor Mains, Swimming Pool, SaltWater Lines, Pipes for Hand Pumps, Industrial Process Lines like Dye Houses, Plating Industry,Sugar, Paper & Breweries, CoalWashing & Ash Handling Aggressive / Corrosive Fluid Transportation etc.

FEATURES:

  • Stronger, resilient & longer lasting
  • LightWeight:Easy to transport and install
  • Easy lnstallation: Solvent Cement joints or Secured threads ensure leak proof joints
  • Smooth bore: Optimum flow rates and low frictional loses
  • Excellent chemical & corrosion resistance
  • Low Maintenance: Superior resistance to most of the chemicals & free from rusting, pitting, scaling and corrosion makingthe system almost maintenance free.
  • Long lasting: hence saves replacement cost

SPECIFICATION

  • pipes: As per ScheduIe 4O and schedule 80
  • Colour : White
  • Fittings: 16kgf/cm2 pressure tight joints
  • Working Temperature : Up to 6O degree C continuous and up to 9O degree C for short time
  • Test : Tested for portable water supplies
Nominal Bore Outside Diameter Wall Thikness Working Pressure Wall Thikness Working Pressure
(Inch) mm mm

Mpa

Psi

mm

Mpa

Psi

½" 21.34+/-0.10 2.77+/-0.51

2.07

300

3.73+/-0.51

2.90

420

¾" 26.67+/-0.10 2.87+/-0.51

1.65

240

3.91+/-0.51

2.34

340

1" 33.40+/-0.13 3.38+/-0.51

1.55

225

4.55+/-0.53

2.21

320

1 ¼" 42.16+/-0.13 3.56+/-0.51

1.27

185

4.85+/-0.58

1.79

260

1 ½" 48.26+/-0.13 3.68+/-0.51

1.14

165

5.08+/-0.61

1.65

240
